Bilstein B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover with 1.5–3.8 in Lift for 5th-Gen 4Runner (2010–2024)

B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover with 1.5–3.8 in Lift for 5th-Gen 4Runner (2010–2024)

Name: Bilstein B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover with 1.5–3.8 in Lift for 5th-Gen 4Runner (2010–2024)
Brand: Bilstein
SKU: C-BIL-TPK8L787
Price: 1113.0 USD
Availability: InStock
Rating: 4.9 (7 reviews)

$1,113.00

Corgrit Identification Code: C-BIL-TPK8L787

Earn 2,226 Entries Toward Our August Giveaway

• Win Free Lights, Suspension, and Gear

• 2x Entries on Bilstein Purchases

• Leave a Review to Unlock Your Entries

• No Entry Limit. Learn More

Available: Ships When Ready

Quantity:

Request My Dealer Quote

Exclusive to Corgrit customers: request priority dealer-level pricing tailored to your build and configuration. Request My Quote

FREE Shipping

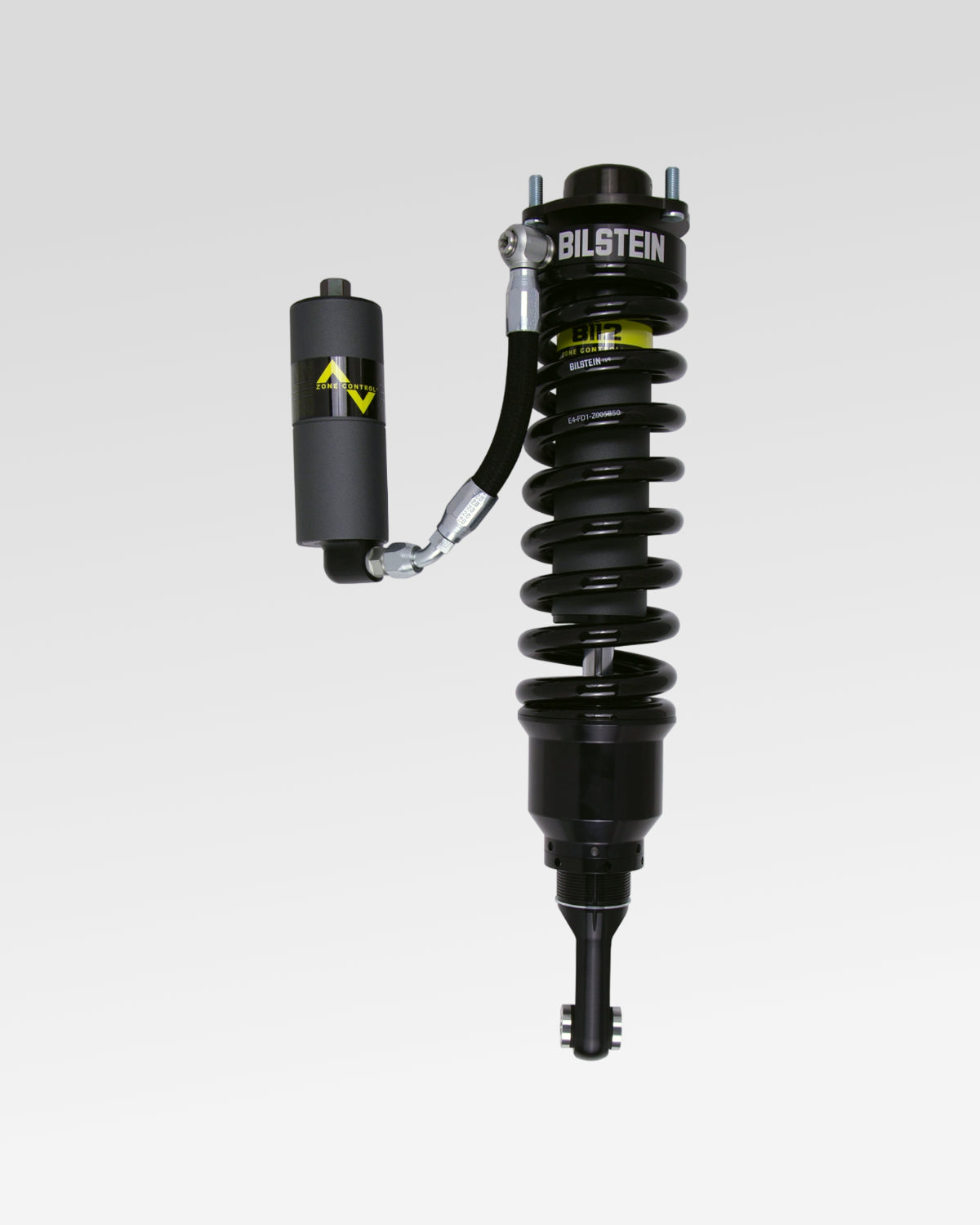

Corgrit — The Bilstein B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover delivers adjustable front-end performance for 5th-Gen 4Runner models with a 1.5–3.8-inch lift range. Its 2.65-inch position-sensitive coilover body, multi-stage damping architecture, threaded spring seat, and remote reservoir are engineered to provide composed road manners with controlled response when suspension demands increase.

Key Features

• 1.5–3.8-Inch Threaded Ride-Height Adjustment for Front Lift Tuning

• Triple-Piston ZoneControl CR System with Multi-Stage Damping

• 2.65-Inch Position-Sensitive Coilover Body for Progressive Control

• Remote Reservoir Expands Cooling Capacity During Demanding Use

Bilstein

Limited 2-Year Warranty Protection

Corgrit Coverage

Dedicated Assistance and Streamlined, No-Hassle Claims

Bilstein B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover with 1.5–3.8 in Lift for 5th-Gen 4Runner (2010–2024)

$1,113.00

Explore

Coilover Specifications

Built for lifted 5th-Gen 4Runner applications, the Bilstein B8 8112 ZoneControl CR combines adjustable ride height with position-sensitive damping and remote-reservoir technology in a purpose-built front coilover.

Series

B8 8112 ZoneControl CR

Fits

5th-Gen Toyota 4Runner (2010–2024)

Compatibility Restrictions

Kinetic Dynamic Suspension System

Material

Steel

Color Family

Gray; Black

Color Name

Evo Gray

Weight (lb)

36.31 lb

Diameter (in)

2.65 in

Front Suspension Maximum Lift Height (in)

3.80 in

Shock Compressed Length (in)

17.99 in

Shock Extended Length (in)

22.80 in

Shock Travel Length (in)

4.81 in

Minimum Spring Rate (lbf/in)

600.00 lbf/in

Maximum Spring Rate (lbf/in)

600.00 lbf/in

Part Number

41-324172

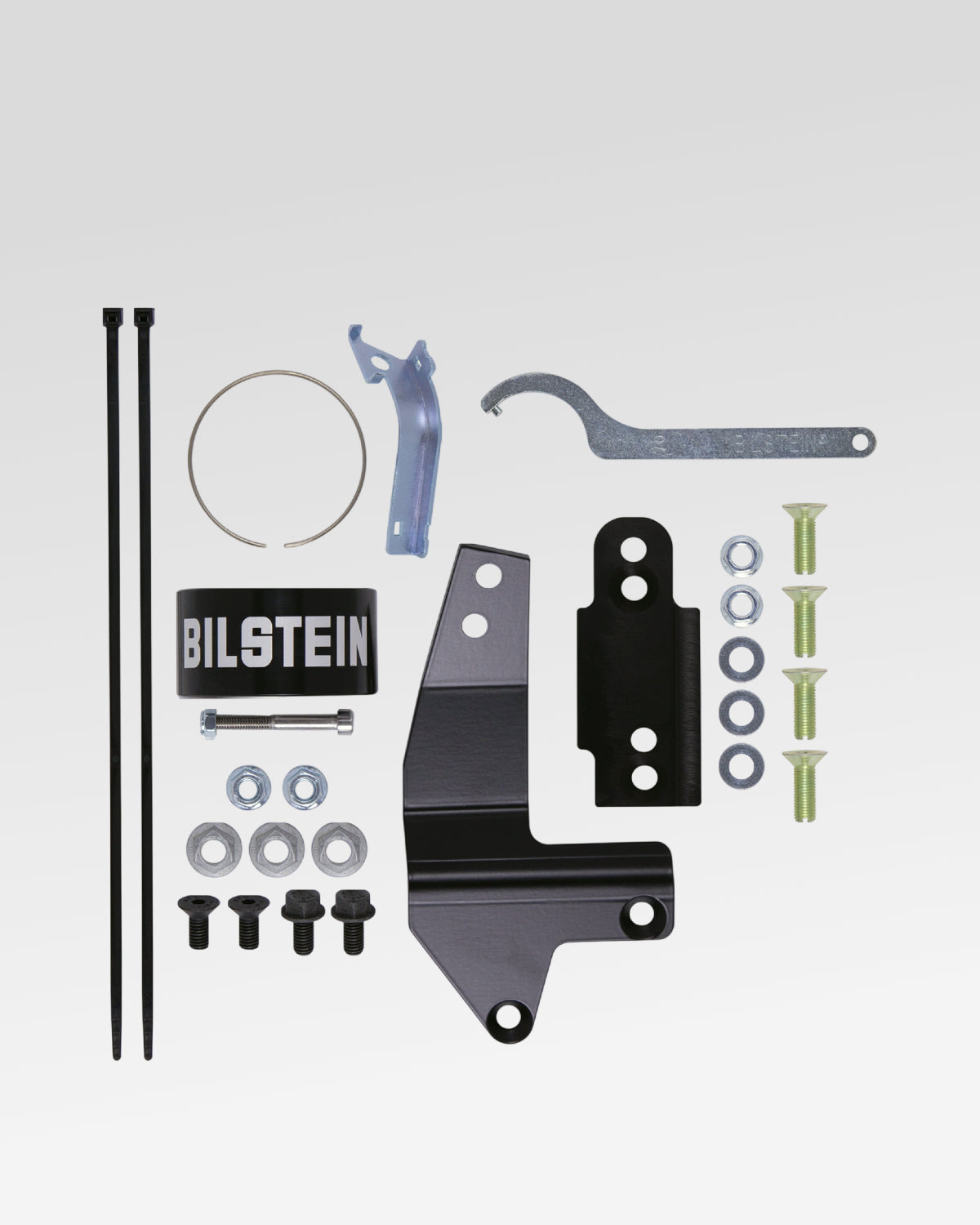

Included Components

(1) Hardware Set;
(1) Remote Reservoir Mounting Bracket;
(1) Remote-Reservoir Coilover;
(1) Spanner Wrench

Overview

The Bilstein B8 8112 ZoneControl CR Front Driver-Side Remote-Reservoir Coilover is designed for 5th-Gen 4Runner builds that require greater suspension range and more sophisticated damping control. Its 1.5–3.8-inch adjustment range provides room to tailor front ride height while ZoneControl CR technology manages damping according to suspension position.

Damping

ZoneControl CR uses a triple-piston architecture to provide three stages of compression valving and two stages of rebound valving. This allows damping to change through the suspension stroke, delivering a controlled response.

Adjustability

A threaded spring seat provides precise ride-height adjustment throughout the 1.5–3.8-inch lift range. This allows the front suspension to be configured around the vehicle's tire size, weight distribution, and desired ride height.

Cooling

The remote reservoir increases oil capacity and cooling potential during demanding suspension use. A bolt-on anodized mounting bracket provides a secure, purpose-built location for the reservoir while maintaining a clean installation.

Design

The remote reservoir provides additional oil capacity for heat management during sustained activity. By separating the reservoir, the system is better equipped to maintain consistent damping when the suspension is working hard.
