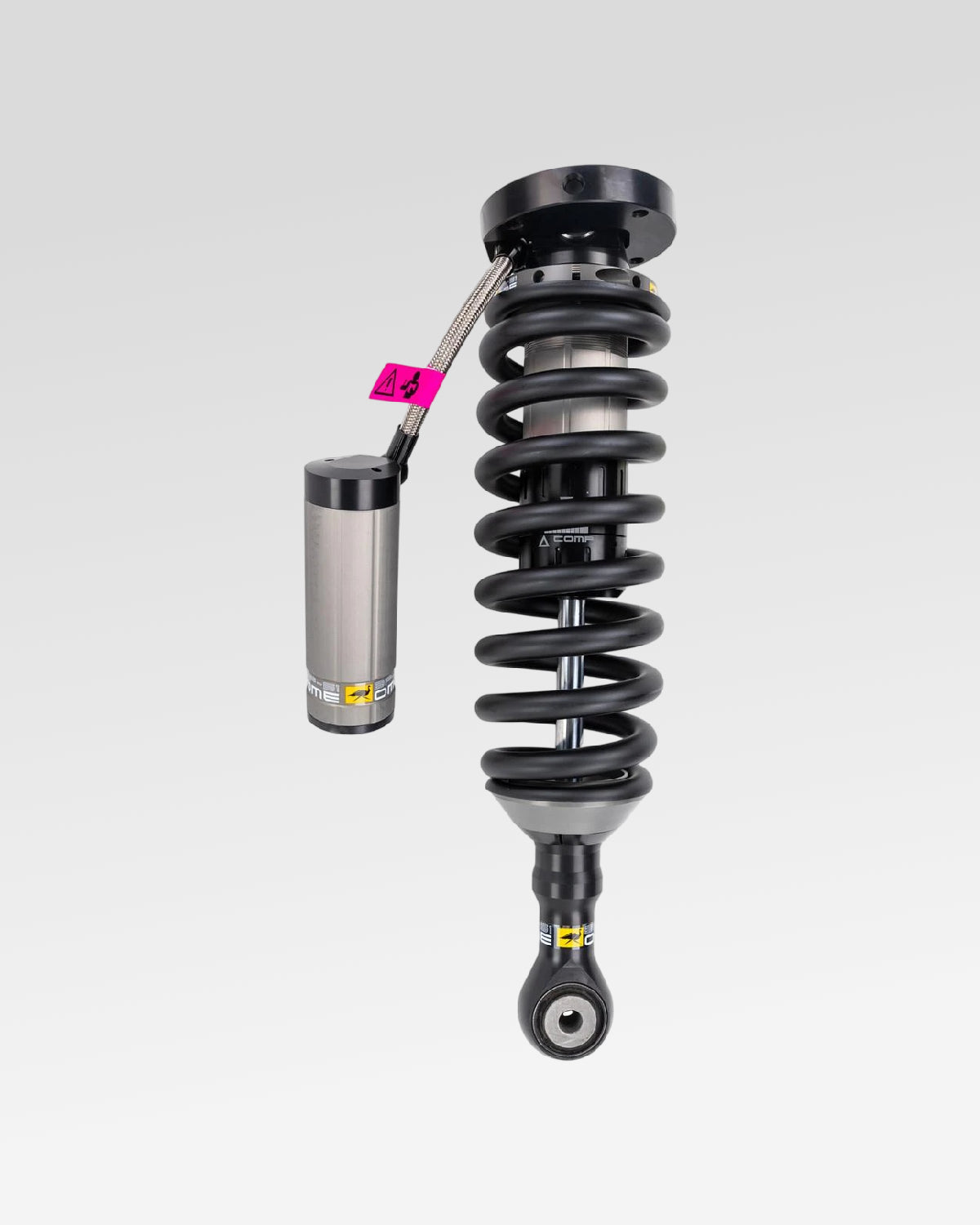

BP-51 Front Passenger-Side Remote-Reservoir Coilover with 3 in Lift and 0–330 lb Load Rating for 3rd-Gen Tundra (2022–Present)

The Old Man Emu BP-51 Front Passenger-Side Remote-Reservoir Coilover provides a highly adjustable front suspension solution for the 3rd-Gen Tundra. Configured for up to 3 inches of lift and a 0–330-pound load rating, it combines a preload-adjustable coilover with large-bore, position-sensitive bypass damping and a remote reservoir for increased suspension control and thermal capacity.

A preload-adjustable collar allows the coilover to provide up to 3 inches of front lift. The adjustable configuration gives the suspension setup flexibility while keeping the spring and shock integrated into a single coilover assembly.

The BP-51 coilover uses position-sensitive bypass technology to vary damping based on the piston position, allowing the coilover to provide varied damping through its travel and adding greater control near the ends of the stroke.

A 51-millimeter internal bore provides the large working volume required for the BP-51 coilover's damping system. The big-bore design contributes to the coilover's broad adjustment range and high-capacity suspension performance.

Internal-bypass technology provides damping control through the suspension end zones. By managing fluid flow according to piston position, the system controls movement as the coilover approaches full compression or extension.
