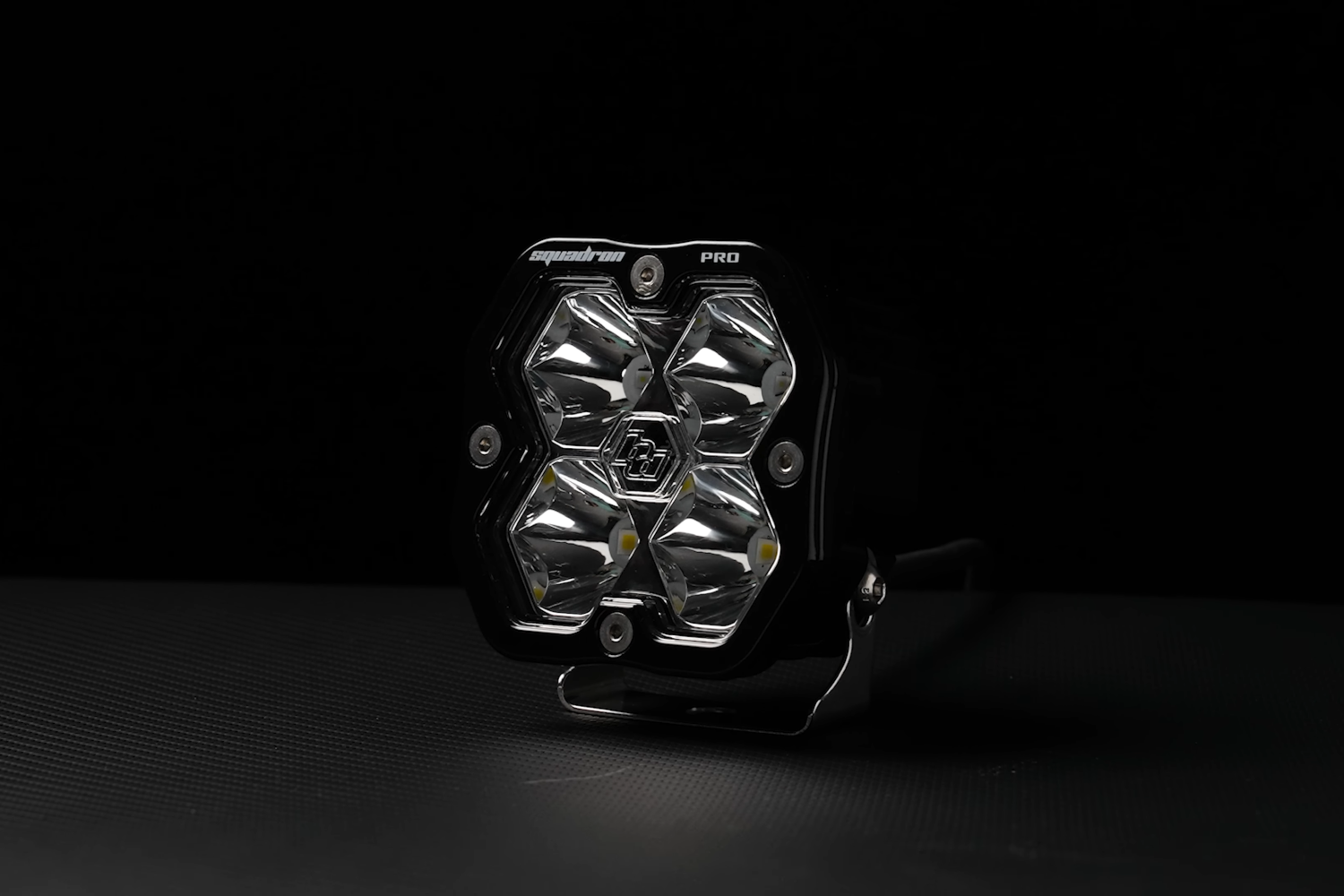

Baja Designs Squadron Sport 2.0 vs. Squadron Pro 2.0

With the release of the next-generation Squadron platform, Baja Designs has introduced two distinct configurations built on the same redesigned foundation: the Baja Designs Squadron Sport 2.0 and the Baja Designs Squadron Pro 2.0.

While both share identical housing, updated optics, and core engineering improvements, they are positioned for different performance requirements. Understanding the differences between the Sport and Pro configurations is essential for selecting the right setup based on driving conditions, vehicle build, and intended use.

Shared Platform and Core Design

The Baja Designs Squadron 2.0 platform is not a revision of the previous generation but a full redesign developed from the ground up. Both the Sport and Pro configurations benefit equally from these changes.

The compact three-inch form factor remains, with dimensions of 3.32 inches in height, 3.29 inches in width, and 2.84 inches in depth. This preserves compatibility across a wide range of mounting locations, including bumpers, A-pillars, roof racks, and vehicle-specific kits.

The updated design incorporates refined ClearView optics, delivering improved beam control with greater distance and usable width while minimizing excess light spill. This results in more efficient illumination focused within the driver’s field of view.

Internally, the revised uService® system introduces clip-in reflectors that remain secure during lens changes, along with a redesigned gasket that improves sealing and long-term resistance to environmental exposure. Both models use a four-pin Deutsch-style connector, providing a more durable and reliable electrical interface suited for off-road conditions.

A redesigned mounting bracket increases vertical adjustability, allowing for more precise aiming across different vehicle setups.

Output and Performance

The primary distinction between the Baja Designs Squadron Sport 2.0 and the Baja Designs Squadron Pro 2.0 is output.

The Baja Designs Squadron Sport 2.0 produces 3,200 lumens at 30 watts, with a current draw of approximately 2.2 amperes at 13.8 volts. The Baja Designs Squadron Pro 2.0 increases output to 5,921 lumens at 65 watts, drawing approximately 4.7 amperes under the same conditions.

Both configurations operate within a 12- to 32-volt range, allowing compatibility across a wide range of vehicles.

Performance improvements over the previous generation are significant in both cases. The Squadron Sport 2.0 achieves a 35 percent increase, while the Squadron Pro 2.0 reaches a 41 percent increase. More importantly, both benefit from a refined beam pattern that improves real-world visibility rather than simply increasing brightness.

Baja Designs evaluates performance using its Effective Lighting Score framework, which measures beam quality, distribution, and usability. The result is a smoother, more even beam that reduces eye strain during extended nighttime driving.

While both lights share the same beam patterns and optical design, the Pro extends that beam farther with greater intensity, making it better suited for applications where long-range visibility is required.

Power and Electrical

Power requirements differ significantly between the two configurations and should be considered when planning a lighting setup.

The Baja Designs Squadron Sport 2.0, at 30 watts, offers a more efficient solution with lower electrical demand. This makes it suitable for vehicles with limited auxiliary capacity or builds that prioritize simplicity.

The Baja Designs Squadron Pro 2.0, at 65 watts, requires more power but delivers substantially higher output. It is better suited for vehicles equipped to handle additional electrical load or builds where lighting performance is a primary focus.

Both lights maintain consistent voltage compatibility and connector standards, ensuring straightforward integration regardless of configuration.

Optics, Lenses, and Beam Control

Both models utilize the same ClearView optics system and support the same range of lens patterns. These include Wide Cornering, Driving-Combo, Spot, Work Scene, and a 90-degree-mounted lenses, each designed to address specific lighting needs.

Lens color options include Clear, Baja Amber, and Factory Amber, allowing users to tailor output for varying environmental conditions such as dust, fog, or snow.

The updated uService system allows for faster and more secure lens changes, making it practical to adapt beam patterns without compromising sealing or component stability.

Integrated Selectable Backlighting

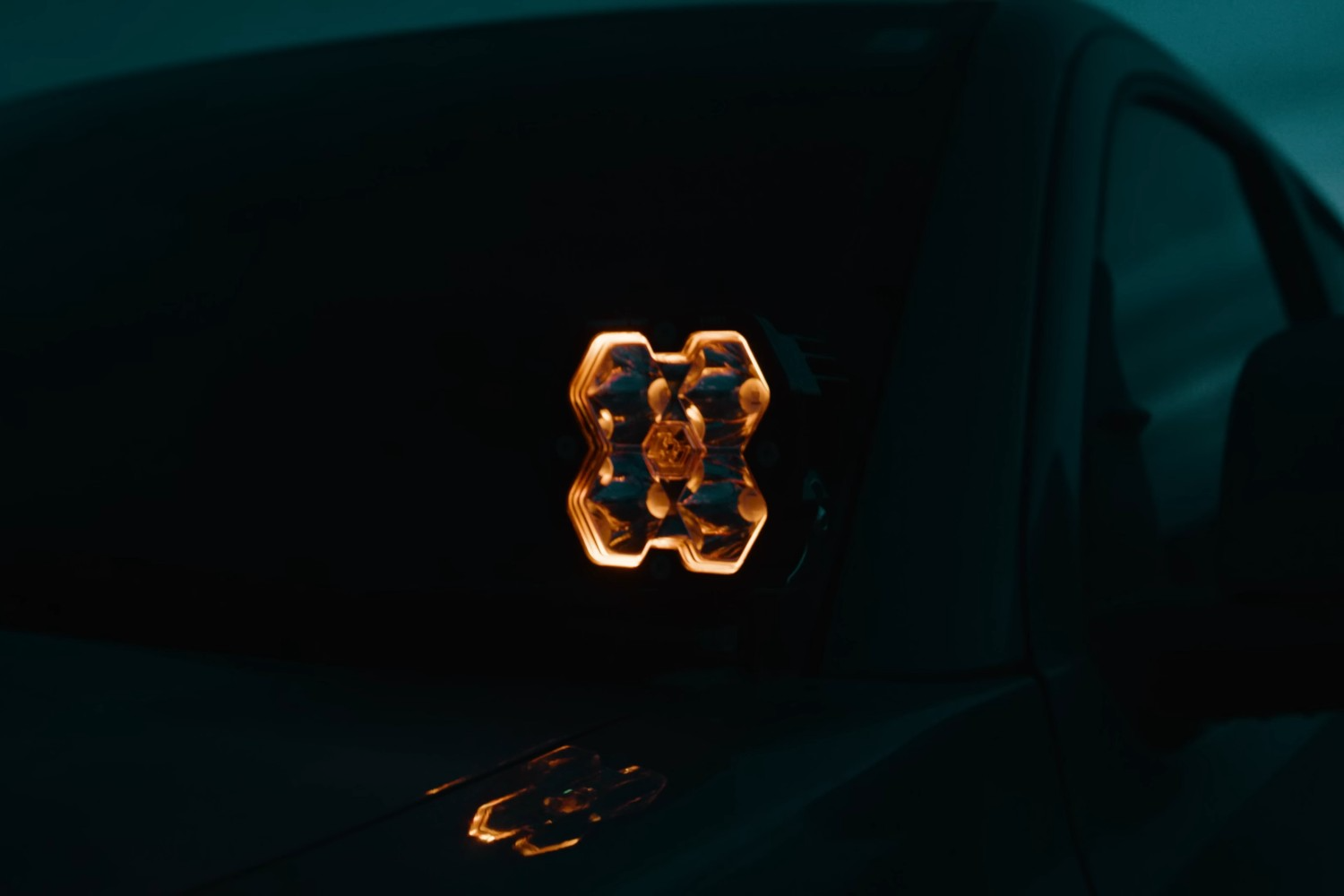

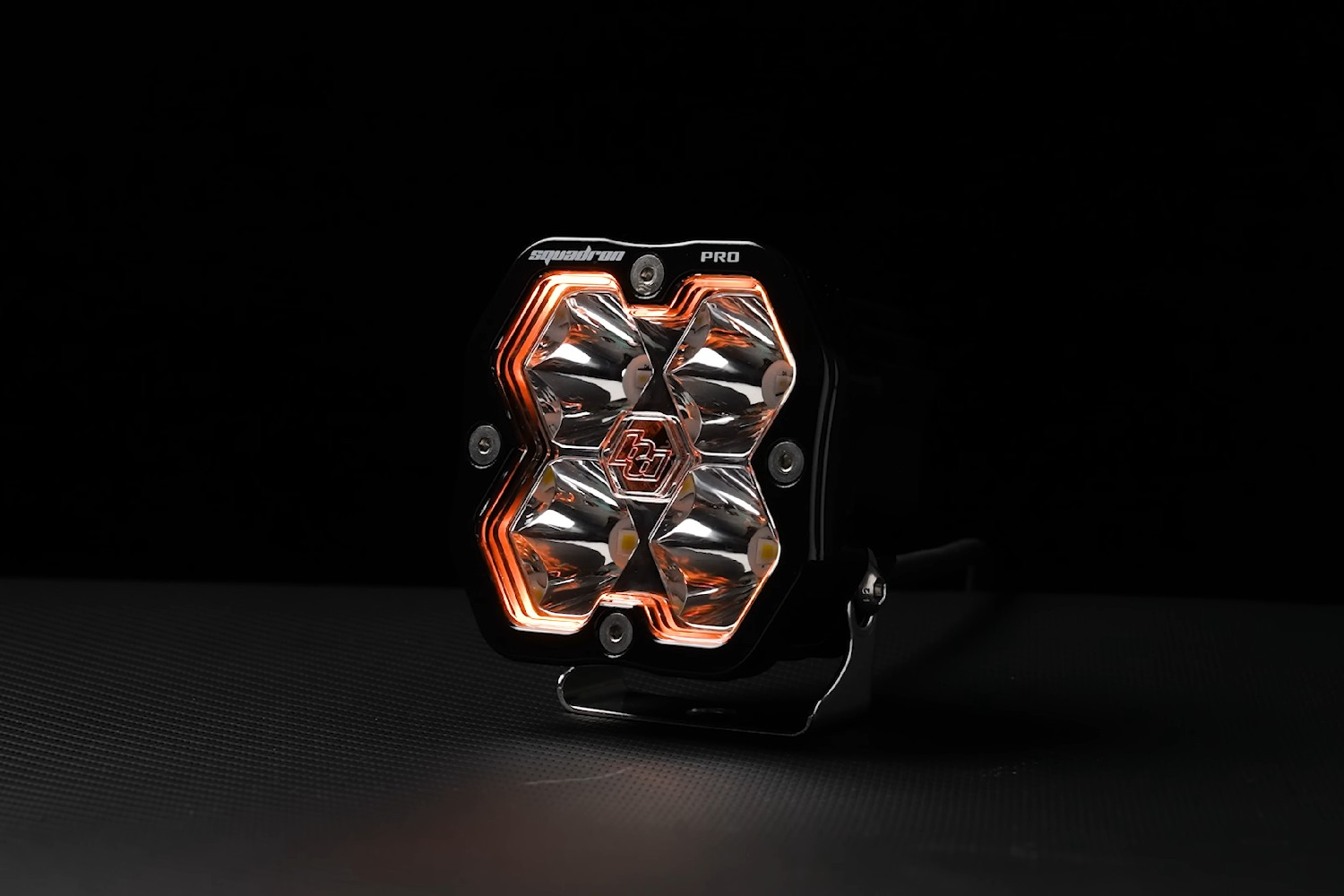

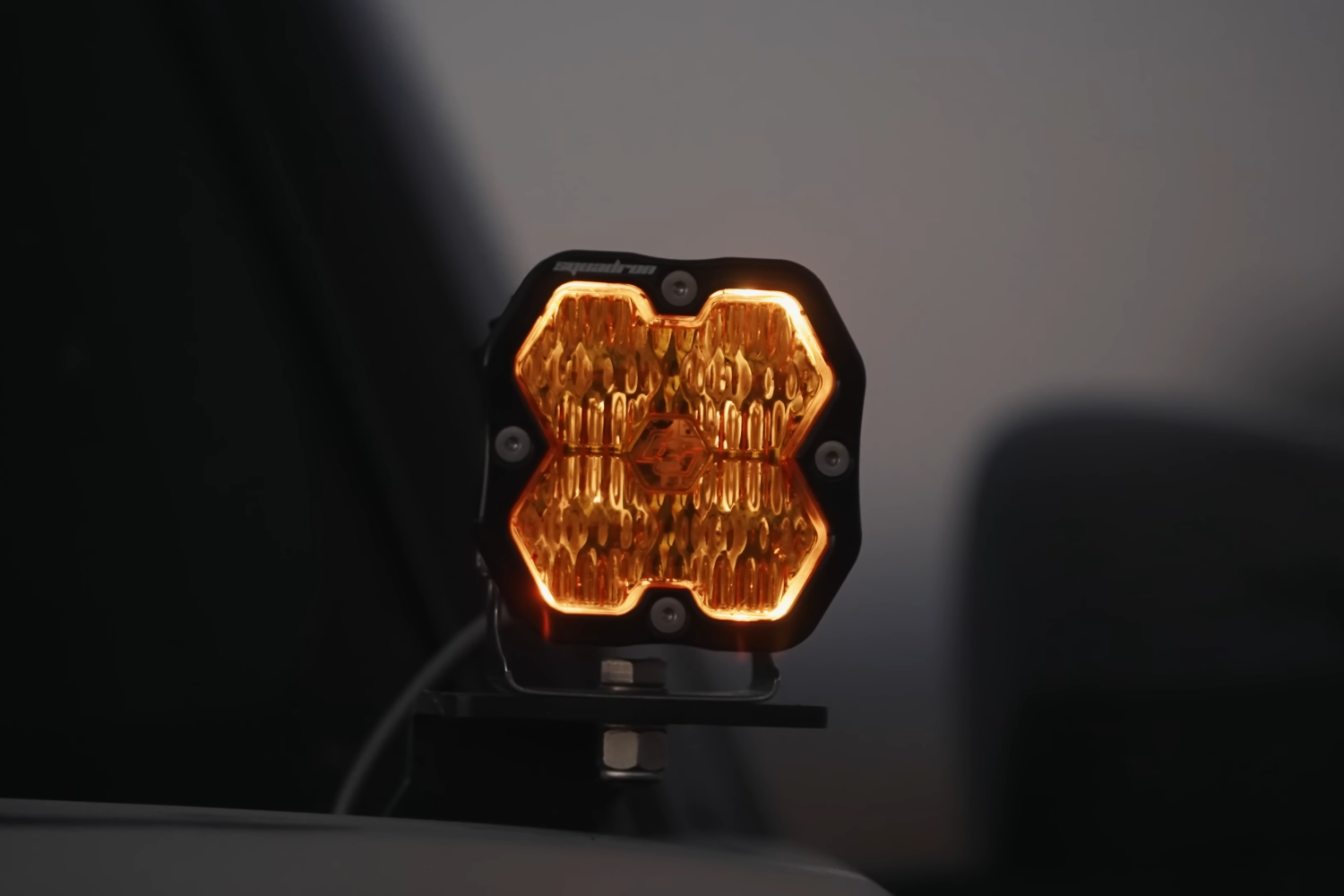

Both the Baja Designs Squadron Sport 2.0 and Baja Designs Squadron Pro 2.0 feature an integrated nine-color selectable backlight system.

Users can choose from red, green, blue, magenta, cyan, amber, yellow, pink, and white. The selected color is retained even when power is removed, ensuring consistent configuration between uses.

This feature provides flexibility in both appearance and low-light visibility, particularly in scenarios where vehicle identification or ambient lighting is beneficial.

Durability

Durability remains consistent across both configurations. Each light is rated IP69K, indicating a high level of resistance to dust, water, and high-pressure cleaning.

The redesigned gasket improves sealing performance, reducing the risk of moisture ingress over time. The 4-pin Deutsch connector enhances resistance to vibration and environmental stress, ensuring reliable operation in demanding conditions.

These improvements reflect a focus on long-term consistency rather than short-term performance gains alone.

Use Case and Application

The difference between the Baja Designs Squadron Sport 2.0 and Baja Designs Squadron Pro 2.0 becomes most apparent when considering intended use.

The Sport 2.0 is well suited for general off-road driving, including trail use, overlanding, and moderate-speed environments. Its output is sufficient for close- to mid-range visibility without introducing excessive intensity that can reflect off nearby terrain.

The Baja Designs Squadron Pro 2.0 is designed for higher-demand scenarios. Its increased output and extended reach make it more appropriate for high-speed desert driving, wide-open terrain, and applications where long-distance visibility is critical.

Because both share the same physical platform, they can be used interchangeably within the same mounting systems, allowing flexibility in build configuration.

Choosing the Right Configuration

Selecting between the Baja Designs Squadron Sport 2.0 and Baja Designs Squadron Pro 2.0 depends on the balance between performance requirements and system capacity.

The Squadron Sport 2.0 offers a more efficient solution with lower power consumption and controlled output, making it suitable for most general-purpose applications.

The Squadron Pro 2.0 provides significantly higher output and extended reach, making it the preferred option for performance-focused builds or demanding driving conditions.

In both cases, users benefit from the same redesigned platform, meaning there is no compromise in build quality, optics, or durability, only a difference in output and electrical demand.

Available Now

The Baja Designs Squadron Sport 2.0 and Squadron Pro 2.0 are available at Corgrit in a range of configurations, including multiple lens patterns, color options, and harness setups to support different use cases and installation preferences. This flexibility allows for more precise alignment with vehicle setup, driving conditions, and intended lighting performance.

Explore the full range of Baja Designs light pods, light bars, and accessories for your Toyota or Lexus setup today at Corgrit.

Frequently Asked Questions

What is the main difference between the Baja Designs Squadron Sport 2.0 and Squadron Pro 2.0?

The primary difference is output and power consumption. The Pro delivers higher lumen output and greater reach, while the Sport offers lower power draw and balanced performance.

Do both models include selectable backlighting?

Yes. Both feature a nine-color selectable backlight system with memory retention.

Are the beam patterns different?

No. Both models use the same optics and support the same lens patterns. The Pro extends the same beam farther due to higher output.

Are the dimensions the same?

Yes. Both share identical housing dimensions and mounting systems.

Which is better for general off-road use?

The Baja Designs Squadron Sport 2.0 is typically sufficient for trail driving and general off-road conditions.

Which is better for high-speed driving?

The Baja Designs Squadron Pro 2.0 is better suited for high-speed or long-distance applications due to its increased output.

Can I upgrade from Sport to Pro later?

Yes. Because both share the same mounting and connector system, upgrading does not require changes to mounting hardware.

The Baja Designs Squadron 2.0 platform delivers a comprehensive redesign that improves optics, durability, and overall usability across both configurations. The choice between the Sport 2.0 and Pro 2.0 ultimately comes down to output requirements. The Squadron Sport 2.0 provides efficient, controlled lighting for general use, while the Squadron Pro 2.0 offers maximum performance for demanding conditions, all within the same compact and proven form factor.
