S1 Headlight Vent Trim LED Light Pod Kit with Wide Cornering Beam Pattern and Clear Lens for 4th-Gen Tacoma (2024–Present)

Sale price$558.95

Corgrit Identification Code: C-BAJ-5IQBC1FI

Earn 1,956 Entries Toward Our September Giveaway
Win Free Lights, Suspension, and Gear
3.5x Entries on Baja Designs Purchases
Leave a Review to Unlock Your Entries
No Entry Limit. Learn More

Only 2 Left: Ships in 1 Business Day
FREE Shipping

Corgrit — The Baja Designs S1 Headlight Vent Trim LED Light Pod Kit adds auxiliary lighting to the 4th-Gen Tacoma by cleanly replacing the factory headlight vent trim pieces. Featuring two powerful S1 LED light pods with a Wide Cornering beam pattern, the kit provides additional illumination without relying on the fog light or grille areas. Headlight vent trims, wiring harnesses, and mounting hardware are included for a plug-and-play installation.

Key Features

Two S1 LED Pods Add Powerful Auxiliary Lighting
Wide Cornering Beam Expands Side Illumination
Replacement Trims Integrate with Factory Headlight Vents
Wiring Harness and Mounting Hardware Included

Baja Designs

Limited Lifetime Warranty Protection

Corgrit Coverage
Dedicated Assistance and Streamlined, No-Hassle Claims

Explore

Light Pod Kit Specifications

Designed for the 4th-Gen Tacoma, this kit incorporates two S1 LED light pods into replacement headlight vent trim pieces. The Wide Cornering beam pattern illuminates areas to the sides of the vehicle, while the clear lenses provide an unobstructed path for the LED output.

Series
S1
Fits
4th-Gen Toyota Tacoma (2024–Present)
Bezel Material
Aluminum
Housing Material
Aluminum
Lens Material
Polycarbonate
Mounting Bracket Material
Stainless Steel
Color Family
Black; Clear
Bezel Surface Treatment
Powder-Coated
Housing Surface Treatment
Powder-Coated
Power Input (W)
19.60 W
Minimum Operating Voltage (V)
9.00 V
Maximum Operating Voltage (V)
28.00 V
Current Draw (A)
1.42 A
Source (Raw) Light Output (lm)
2,320.00 lm
Light Source
Cree LED
Light Color Temperature (K)
5,000.00 K
Beam Pattern
Wide Cornering
Protection Features
Over-Voltage
Ingress Protection (IP) Rating
IP69K
Impact Protection (IK) Rating
IK10
Part Number
448254

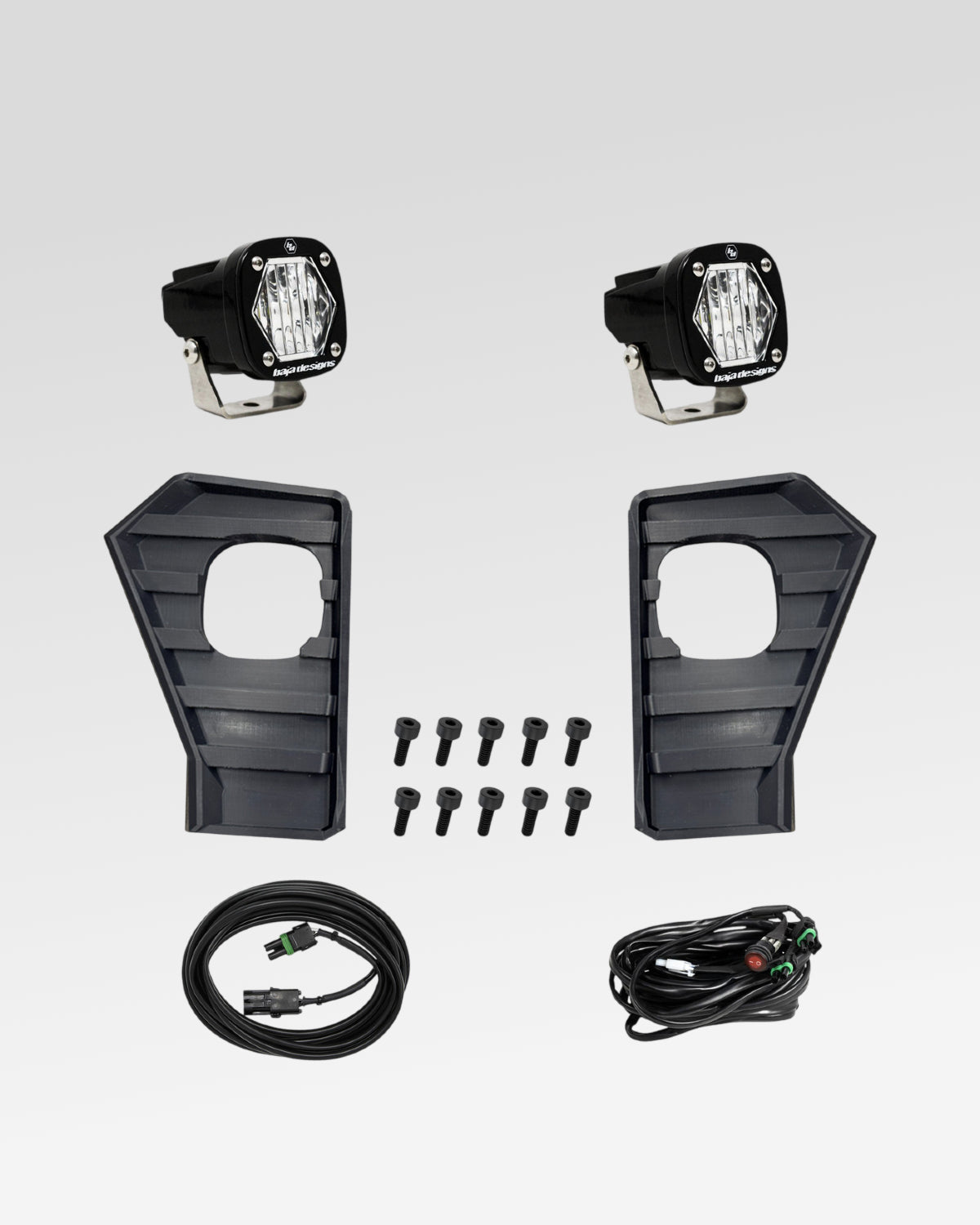

Included Components
(1) Hardware Set;
(1) Wiring Harness;
(2) Headlight Vent Trims;
(2) Light Pods

Overview

The Baja Designs S1 Headlight Vent Trim LED Light Pod Kit provides the 4th-Gen Tacoma with an alternative location for adding auxiliary lighting. Instead of occupying the fog light or grille areas, the S1 pods are integrated directly into replacement headlight vent trim pieces for a purpose-built installation that complements the factory front-end design.

Integration

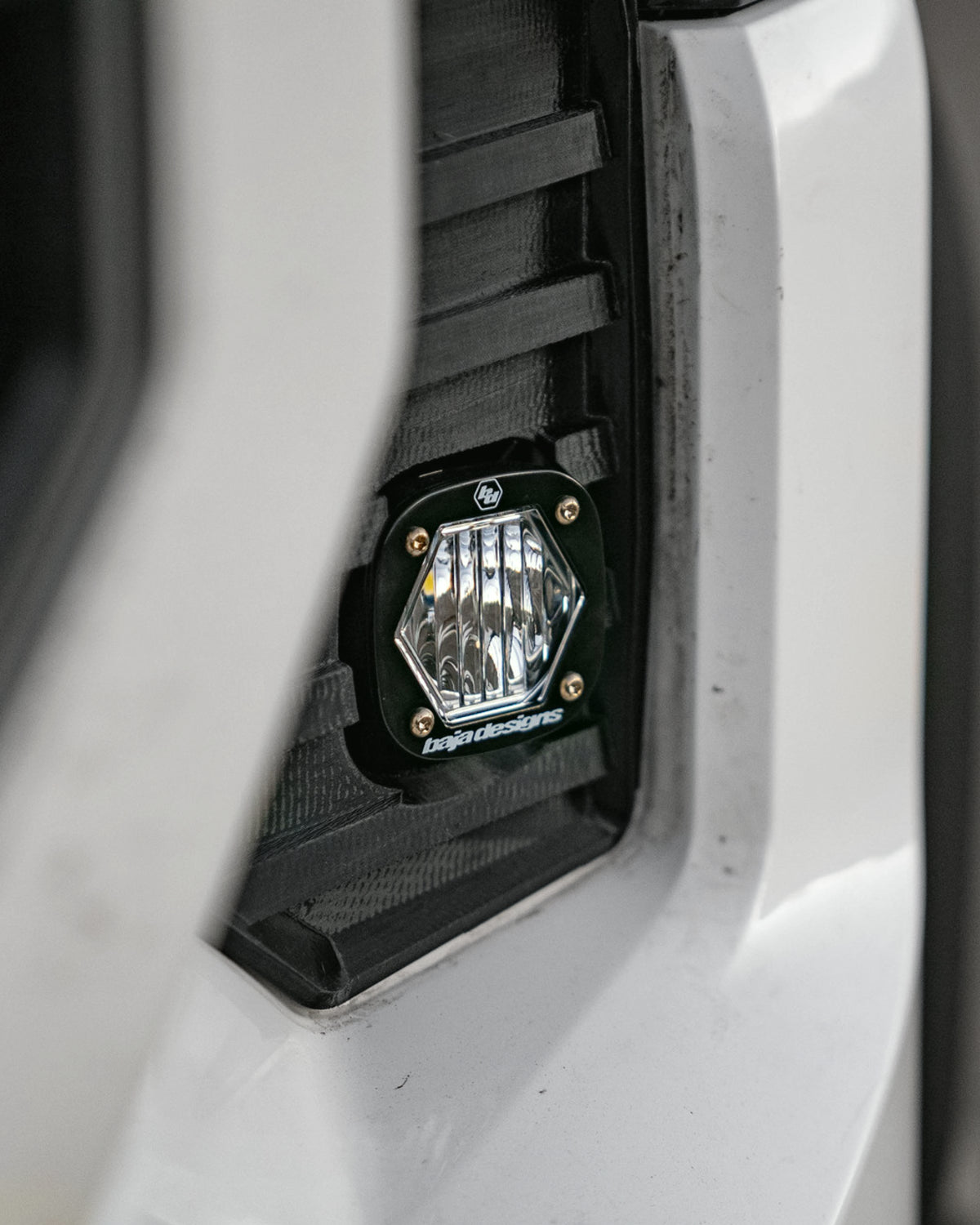

The kit replaces the factory plastic headlight vent trims with Baja Designs trims specifically designed to accommodate the S1 light pods. This creates a clean, dedicated mounting location within the existing headlight vent area.

Performance

The compact S1 light pod form factor makes it well-suited to the headlight vent application while delivering additional lighting capacity for nighttime driving, trail use, and other situations where supplemental illumination is useful.

Beam

The Wide Cornering beam pattern spreads light across the areas immediately surrounding the vehicle rather than concentrating on the distant trail ahead, making the S1 particularly useful for improving visibility toward the sides.

Location

This kit offers another way to add auxiliary lighting without installing a fog light or grille light kit. It provides Tacoma owners with greater flexibility when building a front-end lighting configuration around their existing equipment.
