LensunSolar Flexible Hood Solar Panel (105-Watt) with MPPT Charge Controller & Vinyl Decal for 1st-Gen FJ Cruiser (2007–2014)

Bundle • Free Shipping
Sale price$484.00 Regular price$739.00
Save $255.00
Corgrit Identification Code: C-LEN-0032

In stock

The LensunSolar Flexible Hood Solar Panel with MPPT Charge Controller and Vinyl Decal provides advanced, reliable power management for first-generation FJ Cruiser owners. Delivering 105-Watt output, the panel charges vehicle, auxiliary, or power station batteries during daylight while protecting battery health. The low-profile, flexible design mounts directly to the hood, the ETFE surface reduces glare, and the included MPPT controller ensures intelligent charging. The vinyl decal safeguards vehicle paint for long-term use.

Key Features

Custom Hood Fit for 1st-Gen FJ Cruiser
Grade A PERC Monocrystalline Solar Cells
ETFE Film Surface with Heat, UV, and Corrosion Resistance
Includes 10A Waterproof MPPT Charge Controller and Vinyl Decal

LensunSolar

2-Year Warranty Protection


Corgrit Coverage

Dedicated Assistance and Streamlined, No-Hassle Claims

Explore

Solar Panel Specifications

LensunSolar hood flexible solar panels are engineered to provide consistent energy under extreme environmental conditions. The MPPT charge controller maximizes energy capture, protects against overcharging and reverse polarity, and supports Sealed, AGM, Gel, Liquid, and Lithium-ion batteries. The included vinyl decal protects vehicle paint while plug-and-play wiring enables simple installation. Optional adapters allow compatibility with most power stations.

Fits

1st-Gen Toyota FJ Cruiser (2007–2014)

Materials

Grade A PERC monocrystalline solar cells
Heat-, corrosion-, and ultraviolet-resistant ETFE film

Weight

6.2 lb

Power Output

Maximum Power (Pmax): 105 W
Voltage at Maximum Power (Vmp): 18 V
Current at Maximum Power (Imp): 5.8 A

Electrical Specifications

Open-Circuit Voltage (Voc): 21.24 V
Short-Circuit Current (Isc): 6.4 A
Maximum System Voltage: 500 V
Power Allowance Range: +/-3%

Junction Box

IP68-rated with 5-ft pre-attached cables

Solar Cell Efficiency

23.5%

Test Conditions

Air Mass: AM1.5
Irradiance: 1000 W/m²
Cell Temperature: 77°F/25°C

SKU

LS-105FX2-FJ+FULLKIT

Included in the Box

(1) LensunSolar solar panel
(1) Charge controller
(1) Decal

Overview

The LensunSolar Flexible Hood Solar Panel provides reliable battery support for overlanders and off-road enthusiasts without affecting hood clearance or vehicle styling. It maintains vehicle and auxiliary battery charge while powering fridges, dash cameras, lighting, and other devices. The ETFE surface reduces glare, and high-efficiency monocrystalline cells capture energy efficiently. Its ultrathin, flexible design mounts directly to the hood, eliminating roof racks and conserving cargo space.

Construction

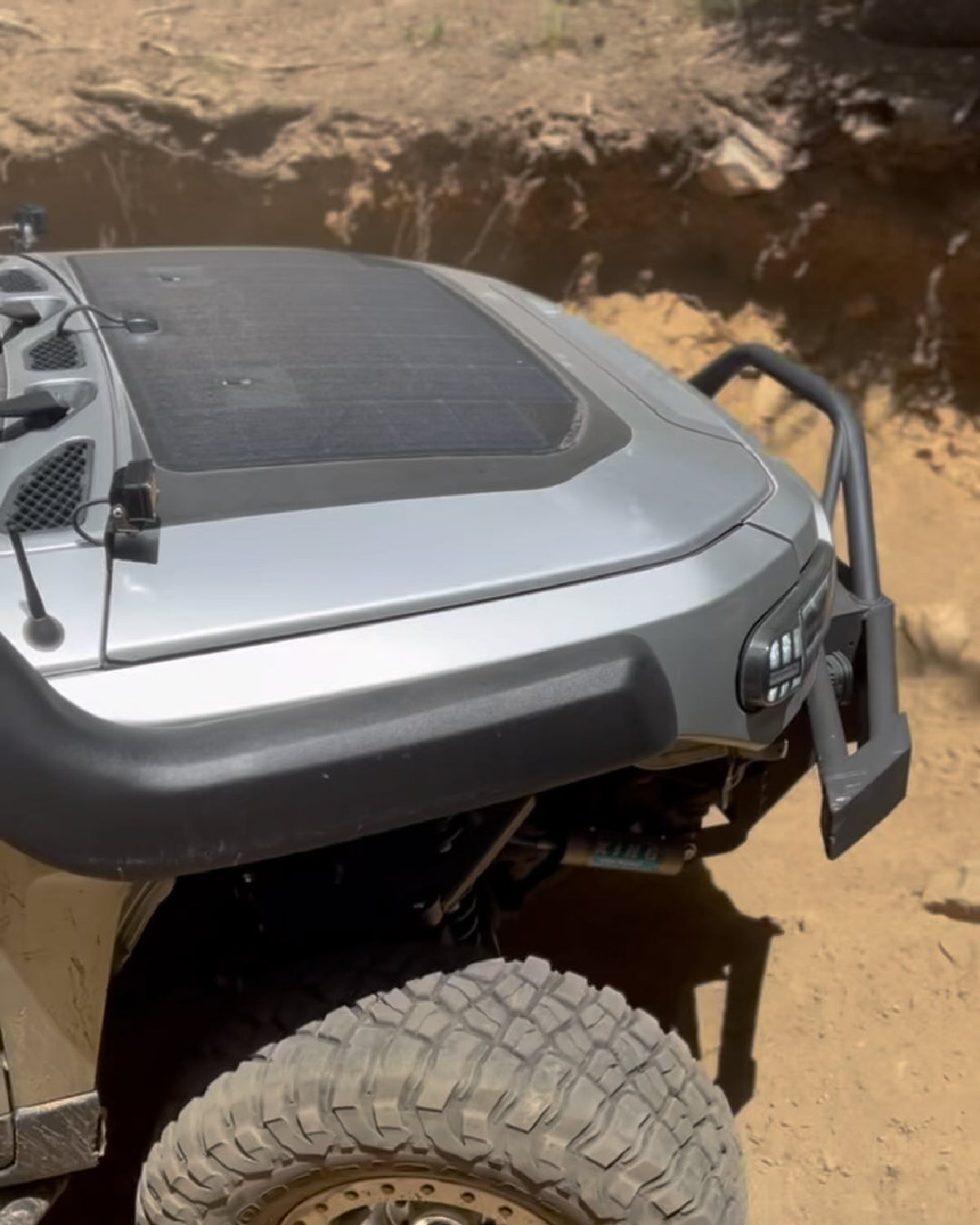

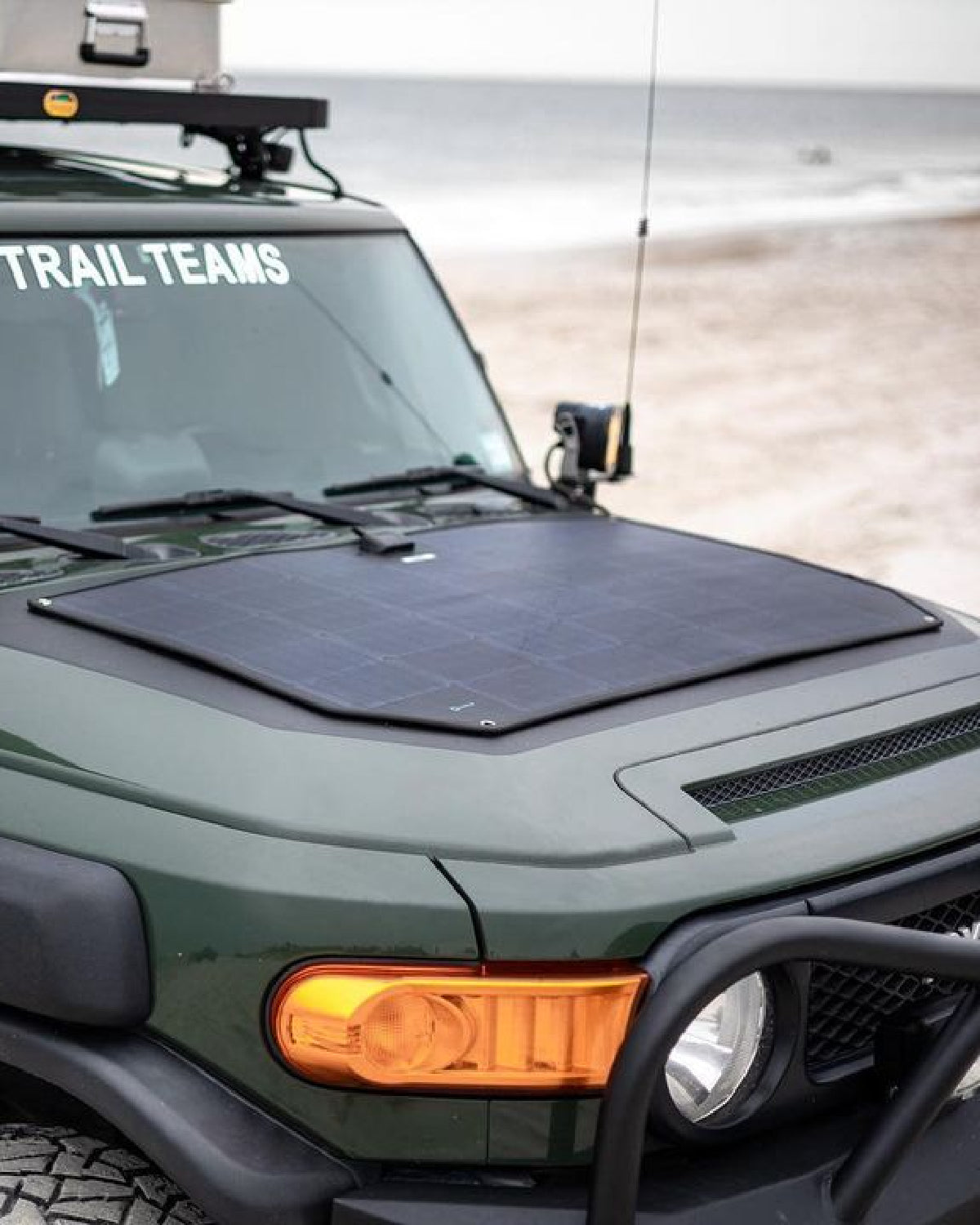

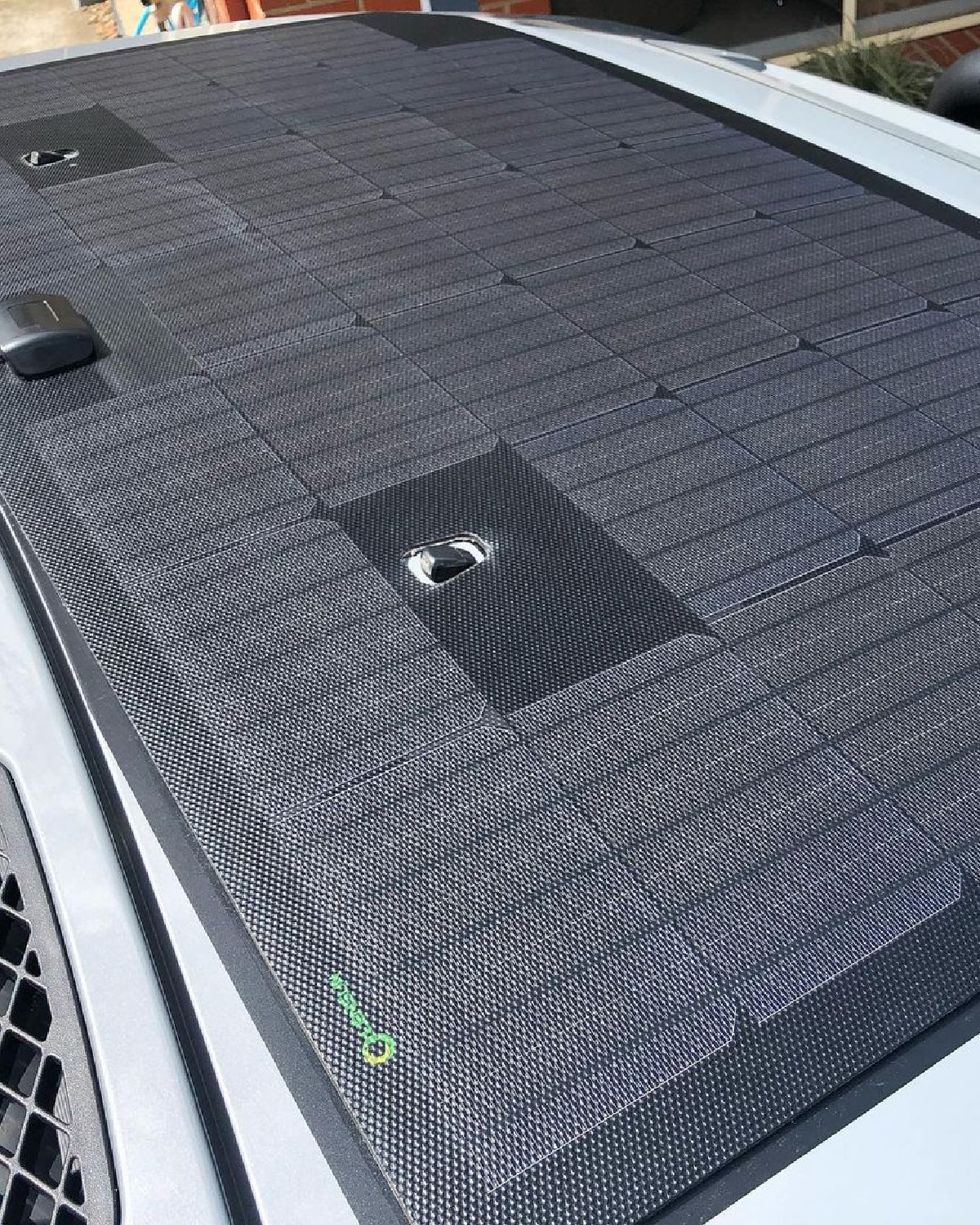

Monocrystalline solar cells are laminated under an ETFE film that resists UV radiation, heat, corrosion, snow, ice, mud, and rocks. The flexible construction conforms to the hood’s contours for durability and long-term performance. Lightweight and unobtrusive, the panel allows the vehicle to retain its intended handling and clearance characteristics.

Design

The flexible solar panel follows the hood’s shape, combining low-profile functionality with aesthetics. Plug-and-play wiring simplifies installation, and the optional vinyl decal protects the paint. The design prioritizes convenience, durability, and efficiency while maintaining a clean, professional appearance and consistent energy output.

Performance

The panel delivers 105-Watt output with 23.5% efficiency, keeping vehicle and auxiliary batteries charged throughout daylight hours. Peak voltage and current support both standard batteries and most power stations. Its design reduces energy loss, preserves battery health, and ensures reliable off-grid performance in variable conditions.

Installation

No drilling or hood modification is required. Pre-wired connectors enable simple mounting, and optional 10A waterproof MPPT solar controller compatibility adds intelligent battery management with overcharge and reverse polarity protection. The vinyl decal ensures secure placement and paint protection for temporary or long-term use.
