LensunSolar Flexible Hood Solar Panel (100-Watt) with MPPT Charge Controller for Toyota Tacoma (1995–2015)

Bundle • Free Shipping
Sale price$408.00 Regular price$629.00
Save $221.00
Corgrit Identification Code: C-LEN-0011

In stock

The LensunSolar Flexible Hood Solar Panel with MPPT Charge Controller provides a durable, efficient, and integrated renewable power solution for Toyota Tacoma models from 1995 to 2015. Designed to mount seamlessly on the hood, this panel maximizes solar intake while reducing vehicle battery strain on long trips. The included MPPT controller ensures optimized charging performance for reliable off-grid power management.

Key Features

Flexible Monocrystalline Solar Construction
Integrated MPPT Charge Controller
Low-Profile Hood-Mounted Design
IP68-Rated with 5-ft Pre-Attached Cables

LensunSolar

2-Year Warranty Protection


Corgrit Coverage

Dedicated Assistance and Streamlined, No-Hassle Claims

Explore

Solar Panel Specifications

The LensunSolar Flexible Hood Solar Panel with MPPT Charge Controller is designed for Tacoma owners who require consistent auxiliary power without compromising vehicle design. The hood-mounted location conserves roof rack space and ensures continuous charging, while the MPPT controller provides efficient energy conversion to maintain battery health.

Fits

1st-Gen Toyota Tacoma (1995–2004)
2nd-Gen Toyota Tacoma (2005–2015)

Materials

Grade A PERC monocrystalline solar cells
Heat-, corrosion-, and ultraviolet-resistant ETFE film

Weight

4.4 lb

Power Output

Maximum Power (Pmax): 100 W
Voltage at Maximum Power (Vmp): 18 V
Current at Maximum Power (Imp): 5.55 A

Electrical Specifications

Open-Circuit Voltage (Voc): 21.24 V
Short-Circuit Current (Isc): 6.11 A
Maximum System Voltage: 500 V
Power Allowance Range: +/-3%

Junction Box

IP68-rated with 5-ft pre-attached cables

Solar Cell Efficiency

25%

Test Conditions

Air Mass: AM1.5
Irradiance: 1000 W/m²
Cell Temperature: 77°F/25°C

SKU

LS-100FX2-2TC+MPPT

Included in the Box

(1) LensunSolar solar panel
(1) Charge controller

Overview

The LensunSolar Flexible Hood Solar Panel for the Toyota Tacoma delivers a vehicle-specific solution for continuous battery maintenance and accessory charging. Designed for overlanders, campers, and long-distance travelers, this panel eliminates the need for roof racks or portable panels by integrating directly onto the hood. Built with cutting-edge solar technology, it provides dependable energy while also reducing glare and protecting paint with an optional vinyl decal layer.

Construction

The LensunSolar Flexible Hood Solar Panel is built with Grade A PERC monocrystalline cells, offering higher conversion efficiency and durability compared to standard panels. These cells are sealed beneath an ETFE film surface that improves light transmission while resisting UV, heat, and wear. At just 3 mm thick, the panel is lightweight and flexible, yet engineered to withstand harsh conditions such as hail, snow, and trail debris for long-term use.

Design

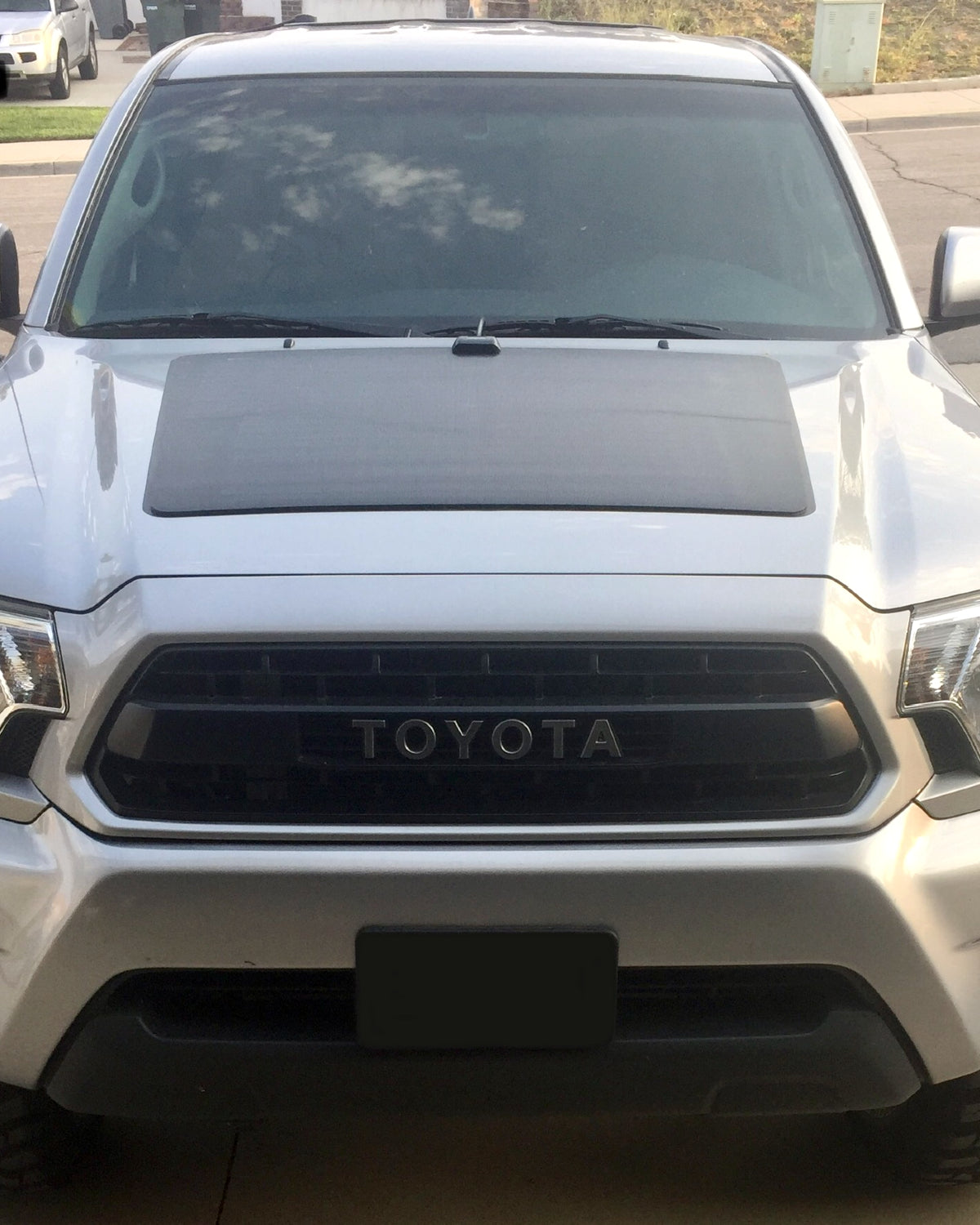

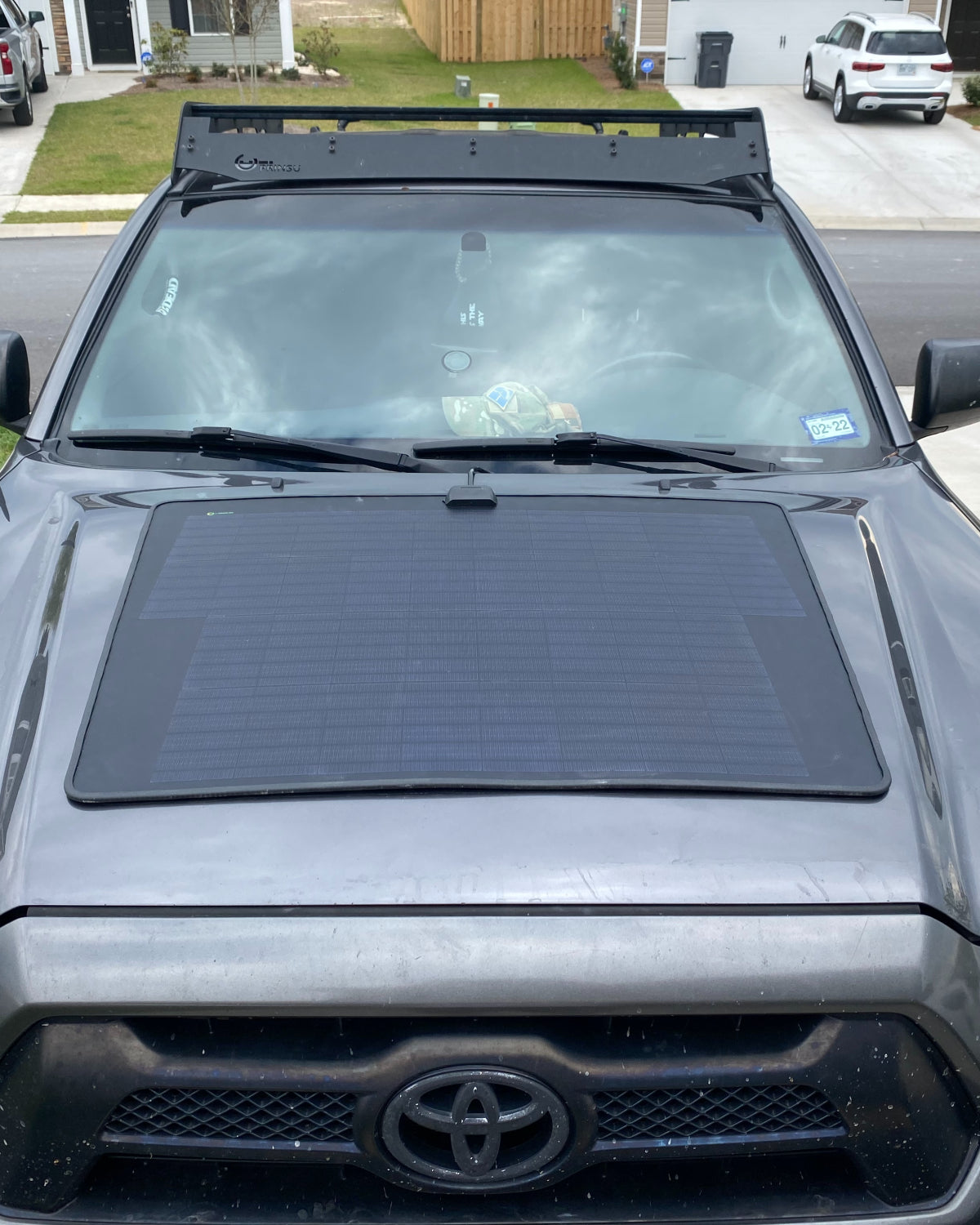

Tailored specifically for the Toyota Tacoma hood, the panel provides a precision fit that integrates cleanly with vehicle lines. Its flexible composition conforms to the surface, eliminating the need for roof racks or bulky hardware while maintaining a streamlined profile. The ETFE finish reduces glare while driving and protects against environmental exposure. For added paint protection, Lensun offers an optional vinyl decal layer between the hood and panel.

Performance

Rated at 100 Watt peak output with 25% efficiency, the panel maintains reliable charging for starter and auxiliary batteries as well as portable power stations. Standard MC4-compatible connectors ensure simple integration, while optional adaptors expand compatibility with brands such as Jackery and Goal Zero. When paired with the Lensun 10A Waterproof MPPT controller, the system offers optimized charging, multi-battery support, and safeguards against overcharging and reverse polarity.

Installation

Installation is designed for ease with a plug-and-play wiring system that requires no drilling or roof-mounted equipment. Once secured to the hood, the panel connects directly to the battery using pre-terminated cables, delivering immediate charging capability. An optional vinyl decal is recommended to prevent paint wear beneath the panel.
